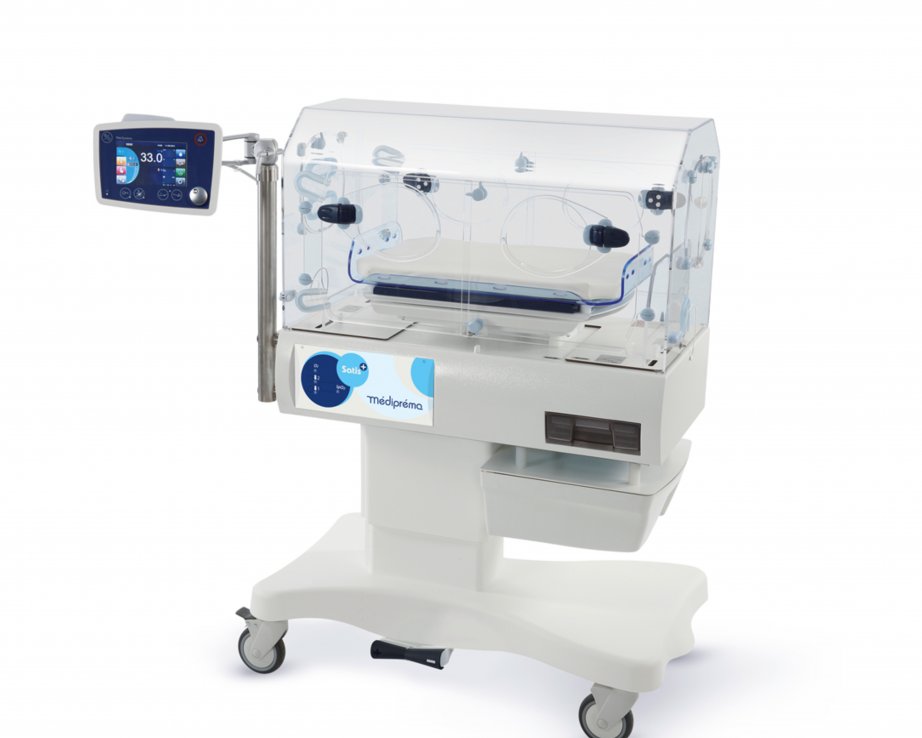

Satis +

Ref: 3600

5 regulation modes : optimal neonatal care

Air and skin regulation modes

Specific modes : twins and tenderesse (for skin-to-skin sessions)

Modes unique to médipréma : stop heating

Genuine developmental care support tools

Numerous features : active and servo controlled system of humidification, Built-in electronic scale, X-ray tray, etc

Options : O² servo control, built-in electronic scale , variable height adjustment, pivoting storage tray, etc.

Accessories : Stainless steel basket holder for naso gastric tubes, ventilator, day and night cover, examination light, etc.

Perfect visibility of the infant and numerous accesses

Spacious Canopy in PMMA without bisphenol with perfect visibility

Numerous other accesses to the infant : doors, ports

11 orficies for easily passing sensors and pipes

Ease of use

Highly intuitive LCD colour touch screen with screen lock button

Inhibition without contact of the alarms (detection of the hand proximity by optical sensor)

Alarms can also be stopped by foot (option)

Designed to prevent the risk of infection

All elements are accessible for cleaning : no seals on ports

Steam and autoclave cleaning compatible

Removable water tank with an automatic cleaning mode

 Technical featuresFeatures
Contact us

All information on this product

Advanced ergonomics optimised foare

Advanced ergonomics optimised foare the canopy of médipréma’s Satis + incubator has been designed so that nursing staff can easily access the baby thanks to its two large lateral swivelling doors with two portholes and a dual-leaf door on the head and feet side. The numerous openings present on the canopy help optimise care of the baby (11 Orifices for easily passing sensors and pipes).

The sliding mattress (rotating as optional extra) is ideal for for an easy access to the neonate head, to facilitate precise and tactful gestures.

Furthermore, the spacious PMMA canopy ensures perfect visibility of the baby on 5 sides.

The incubator is equipped with numerous storage areas and is available in an variable height adjustement model to optimise the working position of medical teams.



A reliable and intuitive thermoregulation and humidification system without compromising the baby’s comfort

Médipréma’s Satis + incubator has a precise, reliable and intuitive thermoregulation system with five temperature regulation modes.

These include the air and skin regulation modes found on all médipréma incubators, along with a Stop heating mode which stops the incubator regulating temperature and humidity while maintaining the renewal of air inside the canopy (monitoring of the baby’s skin temperature continues to be possible), a twins mode suitable for simultaneous monitoring of two newborns via two skin probes and a tendresse mode to secure skin-to-skin sessions.

Médipréma has designed a unique feet-head (and not frontal) ventilation system that directs the warm air along the walls of the canopy ensuring that the required temperature is maintained inside. It also ensures safe access to the baby when the doors are opened with no risk of burns. The Satis + neonatal intensive care incubator benefits from a servocontrolled humidification system (automatic mode available) with easy access to the water reservoir and a visual and sound alarm if the water level falls too low.

These different modes are easy to programme via the incubator’s intuitive LCD colour touch screen, which can be used to view the information in real time in graph form. It also offers good visibility of parameters and alarms with the option of contact-free alarm cancellation (all the saved data is accessible on PC for processing or storage).

SPECIFICATIONS

THERMAL REGULATION :

  • Air mode : regulation from 20 to 39°C (with secure access below 28°C and above 37°C)
  • Skin mode : regulation from 35 to 39°C (with secure access above 37°C)
  • Tendresse mode : adapted to skin to skin situation
  • Twins mode : suitable for simultaneous monitoring of 2 newborns
  • Stop heating mode : stops the thermo-humidity regulation of the incubator

The renewal of air in the canopy is still effective and skin temperature monitoring still possible.

Quick and secure temperature increase without exceeding the requested temperature. The use of Pt1000 Ohm platinum probes, which have almost zero time variability curve, assures the regulation system reliability

ACTIVE AND SERVO CONTROLLED SYSTEM OF HUMIDIFICATION by bolling water. Adjustment range from 35% to 90% (with secure access above 80%).

  • Automatic mode also available
  • Water tank removable. Possibility to cross check the water level - low water alarm. Automatic cleaning mode

OXYGEN INLET

BUILT-IN OXYGEN MONITOR (option) with measuring scale from 0 to 100% and high and low levels adjustable from 20 to 99%

SERVOX, SERVO-CONTROLLED SYSTEM OF OXYGENATION (option) : for a controlled and regulated oxygen level between 21 and 65% oxygen with high and low alarms

BUILT-IN PULSE OXYMETER (option)

ADVANCED, OFFSET MANAGEMENT SYSTEM FOR ALARMS : 3 sets of visual and sound alarms have been defined depending on the level of emergency for the comfort of newborn baby and the medical teams. Crescendo of the alarms

TOO HIGH AMBIANT SOUND LEVEL ALARM : informs teams of rising noise level of the immediate environment of the child in relation to a target level preset. Could help then to take all necessary measures to recover an acceptable ambient noise level

HEATING POWER : 380 watts (absorbed power : 800 VA)

POWER SUPPLY : 220-240V 50/60 Hz

ELECTRICAL CLASSIFICATION IB

SOUND LEVEL ≤ 45 dB(A)

NETWORKING TRANSMITTING datas in accordance with itherm protocole

CLASS IIB MEDICAL DEVICE



DESCRIPTION

7 WIDE COLOURS TFT TOUCH SCREEN : positionned on head side (2 posible positions, right or left), at eye level, adjustable and swivelling for greater visibility of datas and alarms. Visual alarm on 360°
Possibility to display the information in real time in curve forms (monitoring)
All the saved data can be accessed by PC communication for processing or storage

BRIGHTNESS DAY/NIGHT SCREEN

INHIBITION WITHOUT CONTACT OF THE ALARMS (detection of the hand proximity by optical sensor)

SPACIOUS CANOPY (LxWxH 890x455x500 mm) in PMMA without bisphenol with perfect visibility on 5 sides and many accesses to the baby

  • Front and rear panel : inclined side. 2 large lateral swivelling doors with 2 portholes
  • Head and feet side : 1 two-leaf door

ERGONOMIC HINGE BOLTS : allowing to significantly reduce the noise when opening the ports, to increase the visibility inside the canopy and to open the ports with elbows without hygiene faults

11 ORIFICES for easily passing sensors and pipes

COMFORTABLE BEDDING : Anti-bedsore mattress with memory of shape foam, welded bi-elastic polyurethan cover (LxlxH 620x390x30 mm)

TILT POSITIONS CONTINUOUS +15°/-5° adjustable electrically from the outside. Horizontal position

X-RAY TRAY

BUILT-IN ELECTRONIC SCALE : with memory (option)

75% SLIDE OUT TRAY

ROTATING MATTRESS : (0-90°) for an easy access to the neonate head, to facilitate precise and tactful gesture (option)

FLOOR/BEDDING HEIGHT : 1000/1200 mm (with the height adjustment option)

RAIL FOR ACCESSORIES on head side

4 SWIVELLING CASTORS : diam.125mm (2 with brake)

DIMENSIONS : LxWxH max (VHA model) 1467 x 630 x 1368-1568 mm

WEIGHT : 90 kg (VHA model without accessories)



OPTIONS & ACCESSORIES

  • Electrical variable Height Adjustment (200mm)
  • Sliding out mattress 75%, rotating 90°, removable
  • Built-in electronic scale with trend memory
  • Single patient or reusable skin probe
  • Repositionable hydrogel patches
  • Built-in SpO2 monitor
  • Reusable neonatal SpO2 sensors
  • Integrated servo-controlled O2
  • O2 sensor for built-in oxygen monitor
  • O2 set for wall outlet (0-15L/min flowmeter, humidifier and hoses)
  • Internal ventilator hoses holder on removable plate
  • Oxygen hoods
  • Double wall
  • Pole extension for control box
  • IV pole with clamp
  • Sliding storage on feet side
  • Swing aside tray (320x394 mm)
  • U-shape bumper rail
  • Support for 2 cylinders
  • Strech mattress cover
  • Gel mattress
  • Microbeads positioning cushions
  • Wrist / ankle fasteners
  • Night & Day canopy cover
  • Examination LED light with dimmer
  • Kit for RS232 network data connection

Class IIB Medical Device

Electrical Classification IB
