B'bloo
Ref: 1980
Uniform, effective treatment
600 cm² of treatment surface
Luminous flux >3 cmW/cm² (>52 μW/cm²/nm)
Blue light treatment LEDs
Finely woven, radio-transparent blanket for uniform diffusion
Genuine developmental care support tools
Allows parent-child bonding to be maintained and continuation of treatment
No unnecessary alarms that could cause stress to the baby and parents
Sleeping bag to focus the light flow under the naked baby and prevent him/her getting cold in the cot or in his/her parents arms
Versatility of use
Two light intensity levels : 100% or 50%
Use alone in standard phototherapy or combined with a Leddy Bloo-type hood for double-sided phototherapy
Multi-functional : in an incubator, on a radiant warming table, in a cot, in a parent’s or nurse’s arms
Very easy handling : compact and lightweight
Safety
Timer for setting the exposure time : switches off automatically
Pause key to suspend treatment if necessary
Light source automatically switches off if the fibre-optic connector of the control unit is accidentally unplugged
Single-use protective cover : material specially selected to filter as little treatment light as possible, while having a pleasant texture, suitable for skin contact
All information on this product
Contact therapy enabling effective treatment while promoting mother/child proximity

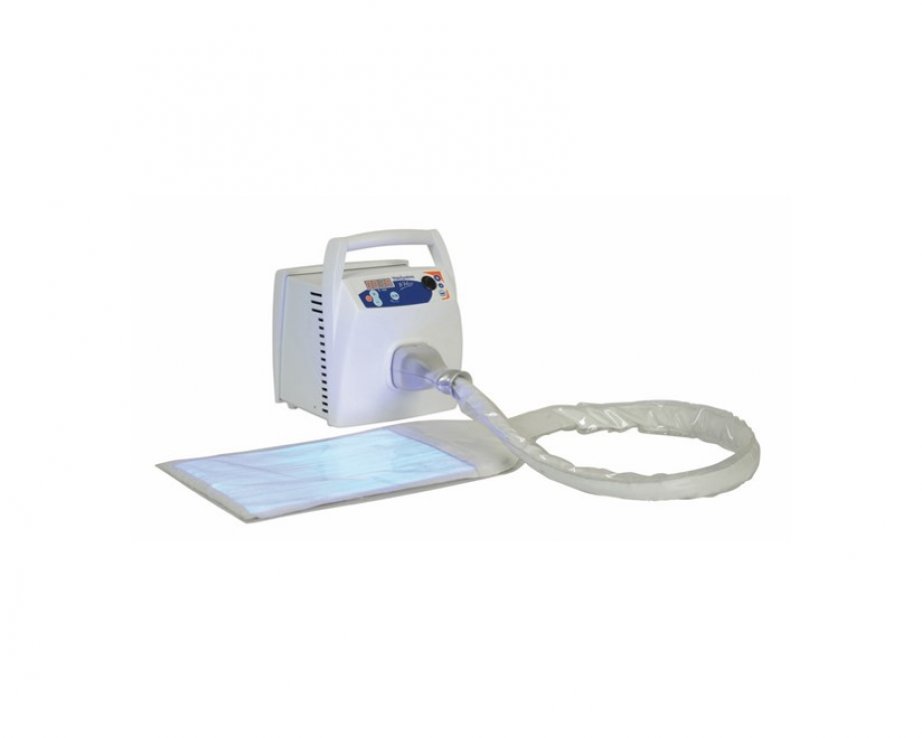

Médipréma’s B’bloo phototherapy blanket enables effective treatment of jaundice and offers versatility of use. The light treatment is delivered to the infant via a fiberoptic blanket, thus enabling simple, effective contact therapy (the infant is placed directly against the light source). The fiberoptic blanket has been specially designed to obtain a perfectly uniform light flow over the whole blanket. The blue LED light source selected by médipréma supplies luminous flux of >3.3 mW/cm². Two intensity settings are possible (full power or 50%).
A device adaptable to all situations
Médipréma’ B’bloo phototherapy blanket is readily portable thanks to its control unit equipped with a handle for easy lifting. This portable solution enables effective, reliable use both in hospital and at home.
The B’bloo blanket is suitable for use in various environments : in an incubator, on a radiant warming table, in a cot, in a parent’s or nurse’s arms. It can be used along with other phototherapy devices, such as a Leddy bloo phototherapy hood, thereby increasing the treatment intensity.
SELECTED BLUE LIGHT TREATMENT LED : wavelength 460 nm.
Treatment light conducted to the baby through fiberoptics. The pad is covered with a polyurethane film appropriate to skin contact.
- Luminous flux > 3.3 mW/cm² (>52μw/cm²/nm) on the blanket - measured between 400 and 550 nanometres (active spectrum DIN 5031) with BabyBlue radiometer
- Treatment surface (Lxl) : 300x200mm
- 2 levels of irradiance ajustables
- Radiolucent blanket
CONTROL BOX with digital display :
- Exposure time programming
- LED usage time counter
- Stand-by button allowing treatment break during infant care
POSITIONING :
The control box can be put on a shelf or a furniture. The handle facilitates its manipulation.
2 other fastening accessories are also available:
- Roll stand with basket (ref. 1982)
SPECIFICATIONS
SOUND LEVEL : < 43dB (A) at 1m
ABSORBED POWER : 60VA
POWER SUPPLY : 220-240V / 50-60Hz
ELECTRICAL CLASSIFICATION : 1, BF type
DIMENSIONS (LxlxH) : Control box = 209x190x255mm
WEIGHT : Control box = 2.8 kg (power supply integrated)
Accessories :
- Disposable cover, pack of 10 (ref. 1983) soft, skin-friendly fabric :
The material has been selected to filter a minimum the treatment light - Sleeping bag (ref. 1984), with a pocket for the pad to focus light on baby skin :
It is suitable for baby lying in a crib allowing parents to hold and feed baby during phototherapy sessions. Suitable for developmental and family-centered care
Class IIa Medical Device
Standards applied : CEE 93/42 and 2007/47,
NF EN IEC 60-601-1, NF EN IEC 60-601-2-50
Meets AAP guidelines
Electrical class I type BF
